The Juniper Networks QFabric family of products offers a revolutionary approach that delivers dramatic improvements in data center performance, operating costs, and business agility for enterprises, high-performance computing systems, and cloud providers. The QFabric family implements a single-tier network in the data center, enabling improvements in speed, scale and efficiency by removing legacy barriers and improving business agility.
The QFabric family includes three members:
- QFabric System: Composed of three separate components—the QFabric Node, QFabric Interconnect and QFabric Director—the QFabric System creates a high-performance, low-latency fabric that unleashes the full power of the data center with the simplicity of a single switch.
- QFabric Node acts as the entry and exit into the fabric
- QFabric Interconnect is the high-speed transport device for interconnecting QFabric Nodes
- QFabric Director provides control and management services to deliver a common window for managing all devices as a single device.
- QFX3500 Switch: The QFX3500 is a standalone 48-port 10GbE top-of-rack switch with four 40GbE uplink ports and Fibre Channel over Ethernet (FCoE) and FC gateway functionality. With a simple software and configuration change, the QFX3500 can also provide the QFabric Node functionality in a QFabric System.
- QFX3600 Switch: The QFX3600 offers 16 QFSP+ ports, delivering a high-performance, feature-rich 40GbE/10GbE top-of-rack switch with iSCSI and FCoE functionality for highly demanding data center environments (available 2H12). The QFX3600 also provides QFabric Node functionality in a QFabric System.
The highly scalable, low-latency QFabric System supports thousands of ports within a single-tier data center or cloud, enabling any-to-any connectivity with the simplicity of a single, highly resilient switch.
The QFabric System, composed of multiple components working together as a single switch, delivers any-to-any connectivity, high performance, and management simplicity, making it the ideal foundation for cloud-ready, virtualized data center environments.
The QFabric components appear as a single switch, enabling any-to-any connectivity for servers, storage, existing network components, and other critical systems in the data center while providing a foundation for cloud-ready, virtualized and mobile computing environments.
The QFabric System components include:
- QFabric Nodes, high-density, fixed-configuration edge devices that connect to servers, storage and other networking devices using standards-based Ethernet interfaces, providing access into and out of the fabric
- QFabric Interconnect, a high-speed transport device that connects all QFabric Node edge devices in a full- mesh topology
- QFabric Director, which provides all control and management services for the QFabric System, enabling it to be managed and operated as a single device
The QFabric System is highly scalable and has unmatched simplicity that improves application performance by delivering low latency and converged services in a nonblocking and lossless architecture. Featuring Layer 2, Layer 3 and Fibre Channel over Ethernet (FCoE) capabilities, the QFabric System is available in two models:
- QFabric QFX3000-M, designed for mid–tier, satellite and container data center environments, supports up to 768 10GbE ports with an average latency of 3 microseconds port to port
- QFabric QFX3000-G, designed for large enterprises, service providers, and cloud data center environments, supports up to 6,144 10GbE ports with an average latency of 5 microseconds port to port
For investment protection, existing QFabric System components can be redeployed between the two models, greatly simplifying flexibility and migration. For example, users can initially deploy a QFX3000-M and, as their 10GbE demands grow, they can migrate to a QFX3000-G with the simple replacement of the QFabric Interconnect, dramatically increasing scale.
Form Factor
Distributed switch composed of three components:
- QFX3500/QFX3600 QFabric Node
- QFX3600-I/QFX3008-I QFabric Interconnect

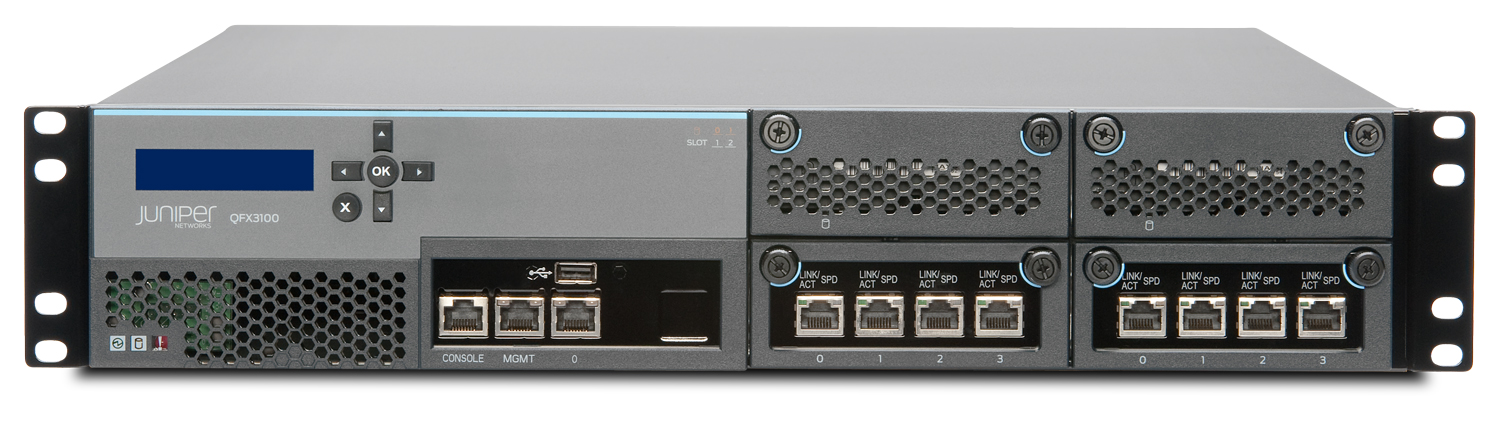

- QFX3100 QFabric Director
Dimensions
- QFX3500 QFabric Node: (W x H x D) 17.25 x 1.75 x 28 in (43.82 x 4.45 x 71.12 cm); 1U
- QFX3600 QFabric Node: (W x H x D) 17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
- QFX3600-I QFabric Interconnect: (W x H x D) 17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U

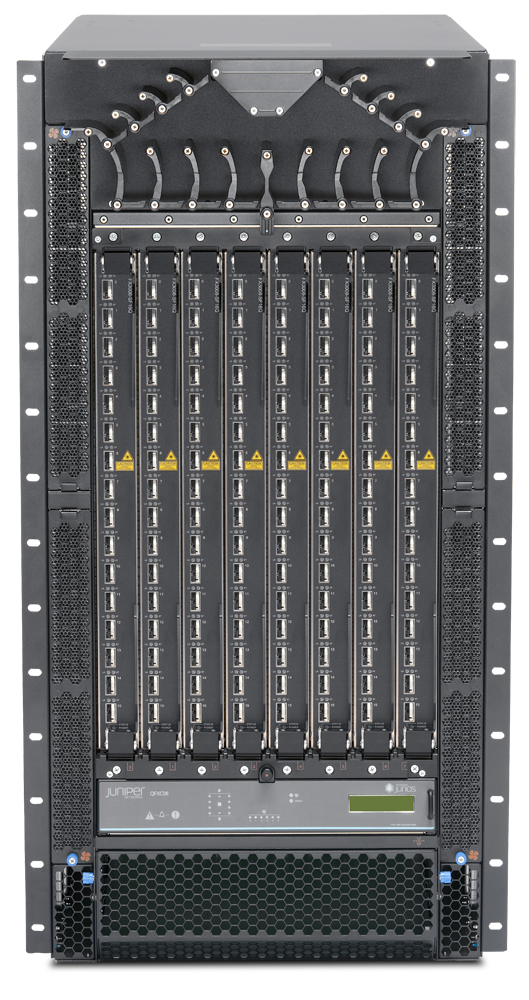

- QFX3008-I QFabric Interconnect: (W x H x D) 17.5 x 36.75 x 32 in (44.45 x 93.34 x 81.28 cm); 21U
- QFX3100 QFabric Director: (W x H x D) 17.5 x 3.5 x 23.75 in (44.45 x 8.89 x 60.33 cm); 2U
Data Rate
QFX3000-M: 5.12 Tbps switching capacity
QFX3000-G: 40 Tbps switching capacity
Port Densities
From 200 to 6,144 server-facing 10GbE/FCoE ports in a single QFabric System
Latency
- 3 to 5us across fabric, under typical loads
- <1us per QFX3500 or QFX3600 QFabric Node
Resiliency
QFX3500/QFX3600 QFabric Node:
- Redundant power supplies
- Redundant fan trays
QFX3600-I QFabric Interconnect:
- Redundant power supplies
- Redundant fan trays
QFX3008-I QFabric Interconnect:
- Redundant power supplies
- Redundant fabric cards
- Redundant control boards
QFX3100 QFabric Director:
- Redundant power supplies
- Redundant disk drives
Power Options
QFX3500 QFabric Node:
- Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
- Power consumption (maximum): 365 Watts
- Power consumption (nominal): 295 Watts
QFX3600 QFabric Node:
- Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
- Power consumption (maximum): 345 watts
- Power consumption (nominal): 255
QFX3600-I QFabric Interconnect:
- Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
- Power consumption (maximum): 345 watts
- Power consumption (nominal): 255
QFX3008-I QFabric Interconnect:
- Power feed (voltage): 200 to 240 Volt AC (single phase); 240 Volt (3 Phase)
- Power consumption (maximum): 6,420 Watts (fully loaded)
- Power consumption (nominal): 4,620 Watts (fully loaded)
QFX3100 QFabric Director:
- Power feed (voltage): 100 to 240 Volt AC (single phase)
- Power consumption (maximum): 476 Watts
- Power consumption (nominal): 220 Watts
Operating System
Junos
Traffic Monitoring
- Port-based
- LAG port
- VLAN-based
- ACL-based
- Mirror to local and remote destinations (L2 over VLAN)
QoS
- Policers (ingress and egress): 1,500 per QFX3500/QFX3600 QFabric Node
- Queues: 12 per QFX3500/QFX3600 QFabric Node—8 unicast and 4 multicast
MAC Addresses
120,000 – 1,536,000
Jumbo Frames
9216 Bytes
IPv4 Unicast Routes
16,000
Number of VLANs
4,096
FCoE/FC
- FCoE Interfaces: 6,144 max
- FC Interfaces: 1,536 max
- Transit switch / FIP snooping FCoE sessions: 48,000 max
- VF_Ports: 384,000 max
Warranty
Juniper standard one-year warranty

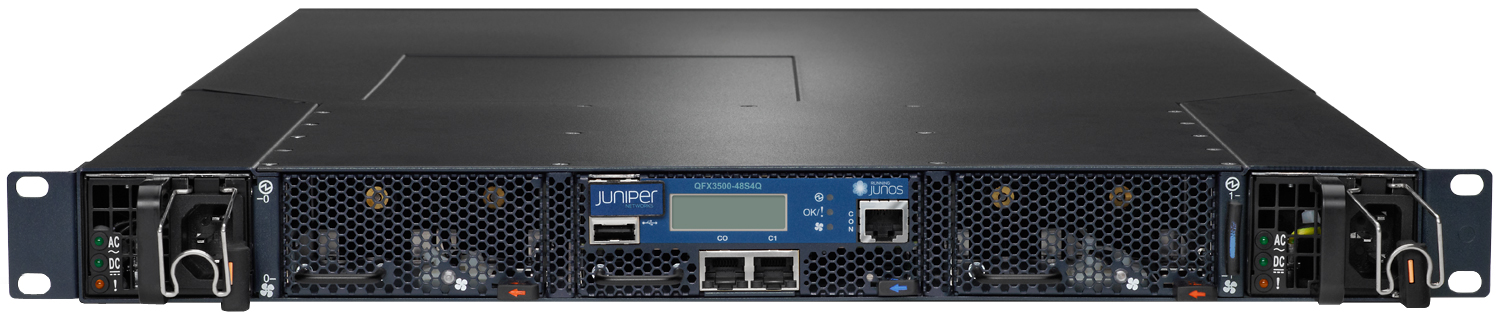

High-performance, low-latency, feature-rich L2/L3 switch delivers wire-speed 10GbE throughput and standards-based Fibre Channel I/O convergence capabilities for the most demanding data center environments while providing a fabric-ready.
The QFX3500 switch delivers a high-performance, low-latency, feature rich L2 and L3 solution for supporting a wide range of deployment scenarios including tr
aditional and virtualized data centers, high-performance computing, network-attached storage, converged server I/O, and cloud computing. A versatile, compact, high-density 10GbE platform that runs the same Junos OS as other Juniper switches, routers and security platforms, the QFX3500 also delivers a fabric-ready edge solution for the Juniper Networks QFabric System.
The QFX3500 offers 63 dual-mode small form-factor pluggable transceiver (SFP+/SFP) ports and four quad small form-factor pluggable plus (QSFP+) ports in a 1 U form factor, delivering feature-rich L2 and L3 connectivity to networked devices such as rack servers, blade servers, storage systems and other switches in highly demanding, high-performance data center environments. For converged server edge access environments, the QFX3500 is also a standards-based Fibre Channel over Ethernet (FCoE) transit switch and FCoE to Fibre Channel (FCoE-FC) gateway, protecting customer investments in existing data center aggregation and Fibre Channel storage area network (SAN) infrastructures.
When deployed with other components of the Juniper Networks QFabric System, the QFX3500, which is manageable by Junos Space, delivers a fabric-ready QFabric Node edge solution that contributes to a high-performance, low latency fabric, unleashing the power of the exponential data center for users migrating from traditional multitier networks.
Form Factor
Fixed-configuration platform
Dimensions
(W x H x D) 17.25 x 1.75 x 28 in (43.82 x 4.45 x 71.12 cm); 1RU
Data Rate
960 Mpps switching capacity
Throughput
1.28 Tbps
Port Densities
- 63 10GbE ports: 36 dual-mode 10GbE/1GbE ports; 12 dual-mode 10GbE or 2/4/8 Gbps FC ports; 15 QFSP-to-SFP+ 10GbE ports
- 4 40 Gbps QSFP+ ports (future)
SFP Port Densities
- 48 dual-mode optical/copper SFP+ ports:
- 36 ports can be used in optical 1GbE or 10GbE mode
- 18 ports can be used in copper GbE mode
- 12 ports can be used in 2/4/8 Gbps FC or 10GbE mode
- Four QSFP+ ports:
- 15 ports of 10GbE (QFSP-to-SFP+ DAC cable)
- 4 ports of 40 Gbps port (future)
Resiliency
Dual hot-swappable AC or DC power supplies for 1+1 redundancy; dual hot-swappable fan trays
Power Options
- 650 watts at 110-240 V AC
- -36 V to -72 V DC
Operating System
Junos
Traffic Monitoring
- Port-based
- LAG port
- VLAN-based
- ACL-based
- Mirror to local and remote destinations (L2 over VLAN)
QoS Queues / Port
12 (8 unicast; 4 multicast)
MAC Addresses
120,000
Jumbo Frames
9,216 Bytes
IPv4 Unicast Routes
12,000 prefixes and 8,000 host routes
Number of VLANs
4,095
ARP Entries
8,000
Warranty
Juniper standard one-year warranty
The QFX3600 delivers a high-performance, low-latency 40GbE/10GbE fabric-ready edge solution for Juniper Networks QFabric System, as well as a versatile Layer 2 and Layer 3 standalone top-of-rack switch for demanding data center.
The QFX3600 Switch is a high-performance, low-latency, feature-rich 40GbE*/10GbE platform that delivers a fabric-ready edge solution for the Juniper Networks QFX3000-M and QFX3000-G QFabric Systems.
Featuring standards-based bridging, routing and Fibre Channel over Ethernet (FCoE) capabilities in a compact 1U form factor, the QFX3600 is also a versatile Layer 2 and Layer 3 standalone data center top-of-rack switch.*
The first 40GbE top-of-rack switch in the Juniper Networks switching portfolio, the QFX3600 addresses a wide range of deployment scenarios—including traditional data centers, virtualized data centers, high-performance computing, network-attached storage, converged server I/O, and cloud computing.
Featuring 16 QSFP+ ports, the QFX3600 delivers feature-rich Layer 2 and Layer 3 connectivity to networked devices such as rack servers, blade servers, storage systems and other switches in highly demanding, high-performance data center environments. When deployed with other components of the QFabric product family, including the QFX3100 Director and the QFX3600-I QFabric Interconnect in a
QFX3000-M QFabric System, or QFX3008-I QFabric Interconnect in a QFX3000-G QFabric System, the QFX3600 provides a fabric-ready QFabric Node edge solution that contributes to a high-performance, low-latency, single-tier data center fabric.
For added configuration flexibility when operating in standalone switch mode*, all QFX3600 ports can be used as 4x10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. When operating as a QFabric Node, the QFX3600 becomes a 10GbE or 40GbE* edge device.
For converged server edge access environments, the QFX3600 is also a standards-based FCoE transit switch, protecting investments in existing data center aggregation and Fibre Channel storage area network (SAN) infrastructures.
Form Factor
Fixed-configuration platform
Dimensions
(W x H x D) 17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
Data Rate
960 Mpps
Throughput
1.28 Tbps
Port Densities
- 16 40 Gbps QSFP+ ports
- 10GbE ports: Maximum 64 10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics
SFP Port Densities
- 16 QSFP+ ports
- Up to 64 10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics
Resiliency
Redundant power supplies; redundant fan trays
Power Options
- Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
- Power consumption (maximum): 345 watts
- Power consumption (nominal): 255
Operating System
Junos
Traffic Monitoring
- Port-based
- LAG port
- VLAN-based
- ACL-based
- Mirror to local and remote destinations (L2 over VLAN)
QoS Queues / Port
12 per (8 unicast; 4 multicast)
MAC Addresses
120,000 – 1,536,000
Jumbo Frames
9,216 Bytes
IPv4 Unicast Routes
16,000
Number of VLANs
4,096
ARP Entries
8,000
Warranty
Juniper standard one-year warranty
